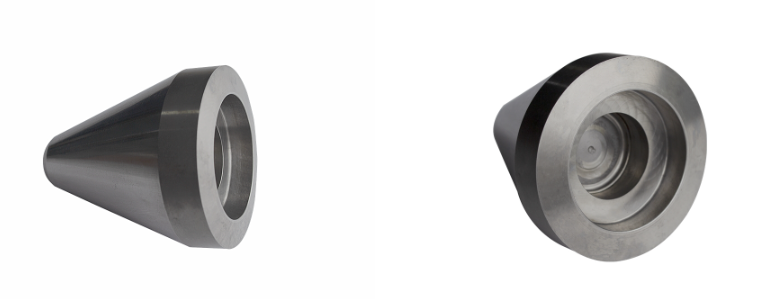

This deep-dive explores why tungsten carbide valve cores are the superior choice for extreme service, how their properties solve critical industrial challenges, and what you must consider when integrating them into your systems.
Why Standard Valve Cores Fail in Extreme Conditions
Before appreciating the solution, understanding the problem is key. In industries like oil & gas, chemical processing, mining, and power generation, valve cores face a brutal onslaught:
lAbrasive Wear: Suspended solids in slurries (e.g., mining tailings, fracking fluids) act like sandpaper, rapidly eroding softer materials.
lCorrosive Attack: Acids, caustics, and seawater can chemically degrade metals, leading to pitting, cracking, and leakage.
lCavitation & Erosion: Imploding vapor bubbles and high-velocity fluids create localized shockwaves that fatigue and tear material away.
lHigh-Pressure Seating: Repeated sealing under extreme pressure can deform or gall seating surfaces, compromising the shut-off.
Standard materials have inherent limits. Stainless steel corrodes in chlorides. Brass is soft and weak. Even hardened steels wear down. The result? Frequent replacements, unplanned shutdowns, safety risks, and leaking seals that waste valuable media and harm the environment.
The Tungsten Carbide Advantage: A Material Science Perspective
Tungsten carbide (WC) is a composite ceramic material, where ultra-hard tungsten carbide grains are bonded together with a cobalt or nickel binder. This structure grants it a unique combination of properties essential for high-performance valve cores:
1. Exceptional Hardness (Up to 90 HRA): Significantly harder than tool steel and most abrasives, it resists wear virtually unmatched. This translates directly to extended valve core service life, sometimes by a factor of 10x or more compared to metals.
2. Superior Corrosion Resistance: Specific grades, particularly those using a nickel-chromium binder, offer outstanding resistance to a wide range of acids, alkalis, and oxidizing agents. This makes them ideal for chemical injection valves and offshore applications.
3. Outstanding Compressive Strength: Tungsten carbide does not deform under extreme seating forces, maintaining a perfect seal profile and ensuring bubble-tight shut-off even at pressures exceeding 10,000 psi.
4. Remarkable Stiffness & Rigidity: It maintains dimensional stability under load, critical for maintaining precise tolerances in precision flow control and metering valves.
Key Applications Solving Real-World Problems
The deployment of carbide valve cores and seats is transformative in specific high-value scenarios:
lOil & Gas (Upstream & Downstream): In choke valves managing abrasive wellhead flows, in HPU (Hydraulic Power Unit) valves, and in chemical injection systems for corrosion inhibitors. They withstand sour gas (H2S) and erosive multiphase flow.
lChemical & Petrochemical Processing: For handling corrosive monomers, catalysts, and aggressive intermediates in plug valves, check valves, and control valves. They ensure reliability in continuous processes.
lMining & Mineral Processing: In slurry knife-gate valves, diaphragm valves, and isolation valves processing highly abrasive ores like iron ore, copper, and gold tailings.
lPower Generation: In fly ash handling systems, FGD (Flue Gas Desulfurization) scrubber valves, and high-pressure boiler feed water let-down services.
Critical Considerations for Specification and Use
Choosing the right tungsten carbide valve component is not merely a material swap. It requires engineering foresight:
lGrade Selection: WC-Co grades excel in wear resistance. WC-Ni-Cr grades are for corrosive environments. The binder content and grain size must match the application.
lPrecision Manufacturing & Tolerance: Carbide is sintered and must be precision ground. Ensure cores meet exact API 6A, ASME B16.34, or other relevant standards for geometry and surface finish.
lDesign for Brittleness: Unlike ductile metals, carbide can be brittle. Valve design must ensure proper alignment, avoid point loading, and prevent impact during assembly (anti-blowout stem designs are crucial).
lCompatibility with Valve Trim: The core must mate perfectly with other trim materials (e.g., stellite, other carbide grades) to prevent galvanic corrosion or differential wear.
lTotal Cost of Ownership (TCO): While the initial cost of a carbide valve core is higher, the TCO is dramatically lower due to reduced changeouts, less downtime, and superior leakage prevention.
Conclusion: An Investment in Ultimate Reliability
Specifying tungsten carbide valve cores is a strategic decision for asset managers and engineers targeting maximum uptime and lifecycle efficiency. They are not for every valve, but for the 10% of applications that cause 90% of your maintenance headaches, they are the definitive answer.
When standard components are failing prematurely under extreme wear and corrosion, upgrading to engineered tungsten carbide components moves the problem from a recurring operational expense to a solved equation. It represents a commitment to safety, environmental stewardship, and operational excellence where it matters most.
Looking for a durable valve solution? Consult with your valve manufacturer or a specialized industrial valve trim supplier to discuss if your severe-service application is a candidate for the unmatched resilience of tungsten carbide technology.
